A Nissan Interstar L2 H2 for a high speed door and industrial cleaning firm

Efficiency and customisation: a great solution from Syncro in a Nissan Interstar

No two Syncro van racking systems are identical. To navigate the infinite possibilities that our racking system offers, therefore, it is useful to take a look at fully customised configurations designed with maximum efficiency in mind.

The system we are exploring today is installed in a 2024 MY Nissan Interstar L2 H2. This project was commissioned by a company that specialises in high-speed doors, forklifts and cleaning services for industry.

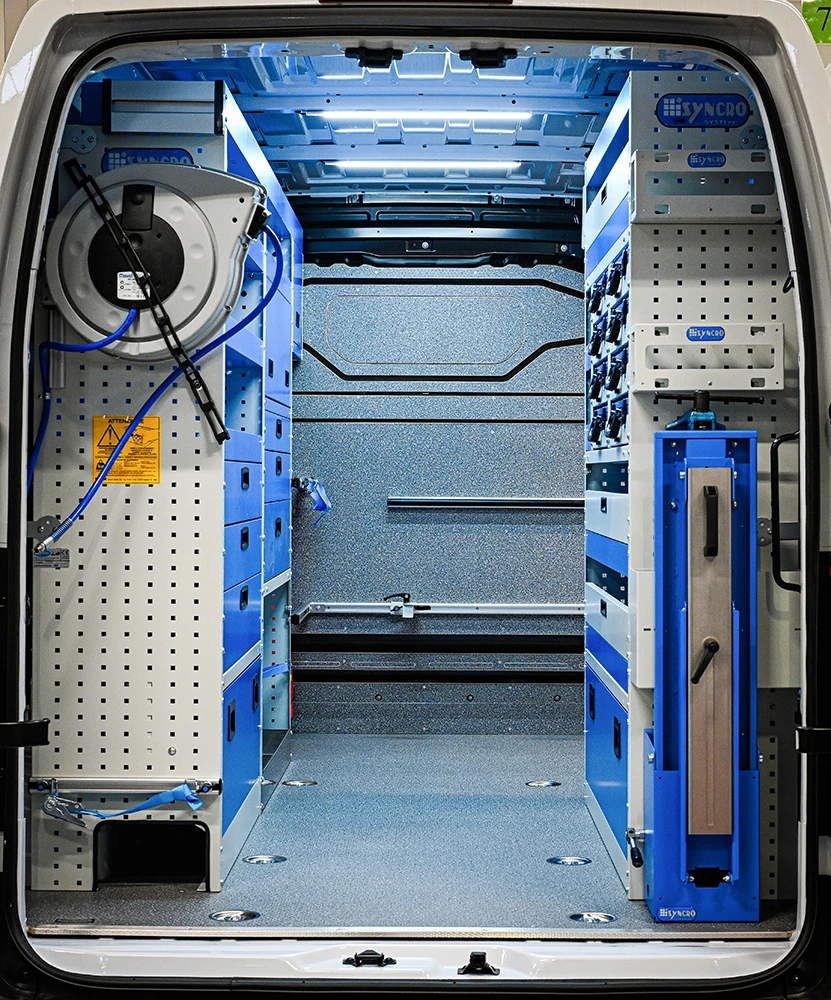

The result of the transformation is a van with racking on both sides right up to the roof, a bulkhead equipped with cargo retaining accessories and a few special solutions to satisfy the customer’s needs.

Let’s dive in!

Liners? Yes, always

It is highly inadvisable to do without interior liners. And it’s not only us saying it. Just ask any customer who has installed Syncro racking in the past. Bodywork protected by liners withstands wear and impact from falling objects for years to come, and also resists the action of damp caused by accidental spillages.

The floor and bulkhead of this Interstar are covered with marble-look plywood lining panels. The floor liner is reinforced by protective steel edge profiles at the doors and is fitted with recessed steel cups to permit use of the original anchor rings while keeping dirt and water out.

The doors and walls are lined with panels of galvanised and painted steel.

Other lining solutions for the Nissan Interstar

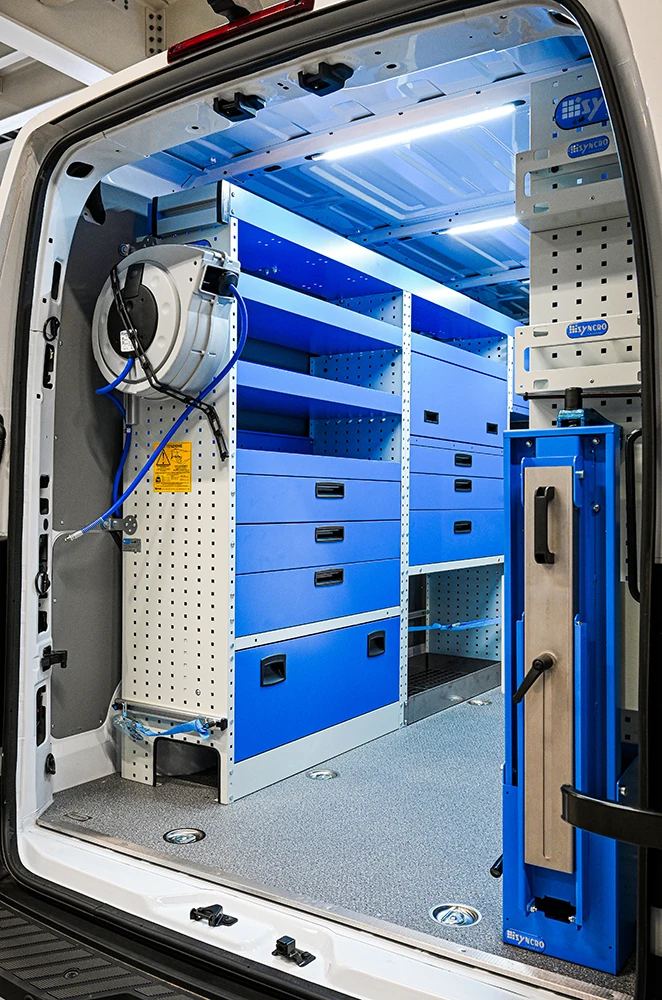

Drawers and shelves on the left of the Interstar

The racking on the left of this Interstar L2 H2 consists of:

  • a floor-level compartment with a lift-up door over the wheel arch and a “special” customisation – see the focus below!

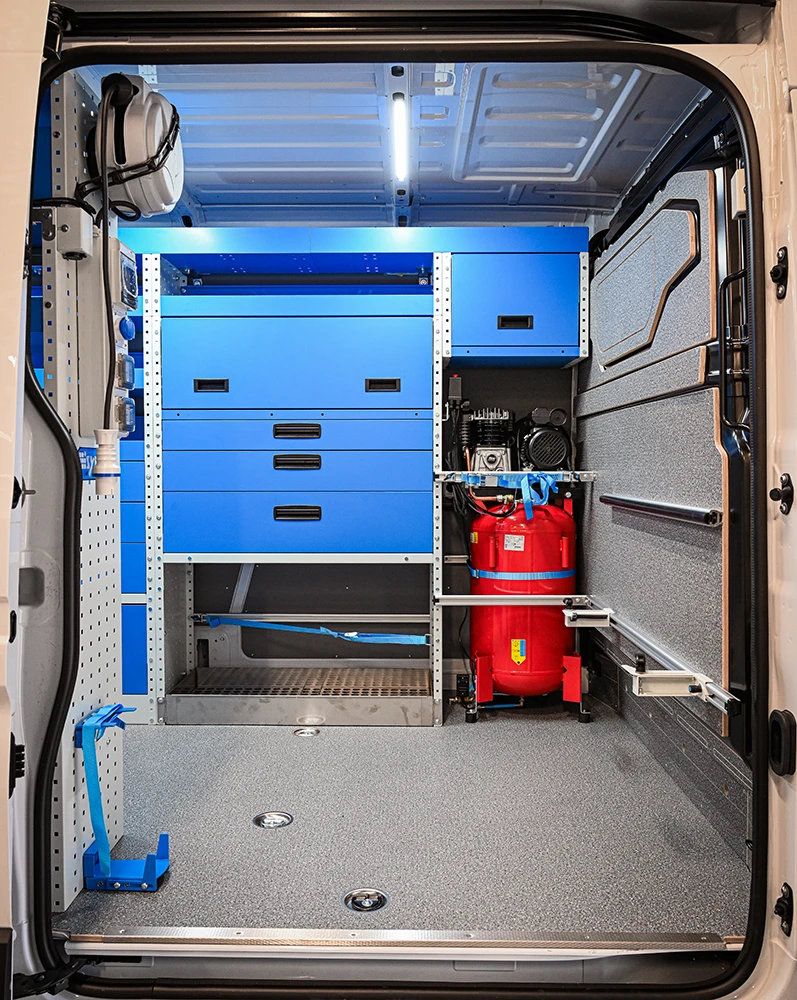

  • a stainless-steel tray for transporting jerry cans, with a drip grille, a Syncroblock bar and a lashing strap
  • a compartment adjacent to the bulkhead with two Syncroblock bars and a lashing strap at the front, used to stow a 90 litre, 2.25 kW vertical compressor connected to a hose reel near the left rear door
  • six metal drawers, with recessed release buttons in the handles, full-length opening action and automatic latching mechanisms
  • six shelves including a plain shelf with a top-pivot door and five configurable ones with non-slip mats and space dividers
  • a full-length top tray with an asymmetric access door at the rear

Only with Syncro can you put horizontal racking elements wherever you want

It (almost) always applies that any horizontal element of Syncro racking can be installed at any height, from floor level to right under the roof, and in any position, either between two side panels or inside a locker. It’s a question of flexibility, which, in the case of Syncro racking is limited only by the size and shape of the van.

Our advice? Decide where each element would be most convenient for you, make a list of your requirements and submit them to the Syncro team at the consultation stage. We’ll do everything we can to meet your needs!

Focus: a special solution in this racking system

Now let’s explain the “special” feature you can clearly see in the side panel of the left racking: a cutout at floor level.

This opening was tailor-made for the customer, who plans to use this compartment to stow a very heavy tool that is slightly too long to fit inside completely. The object is mounted on wheels and can be removed and replaced either through the lift-up door or simply by wheeling it into or out of this opening.

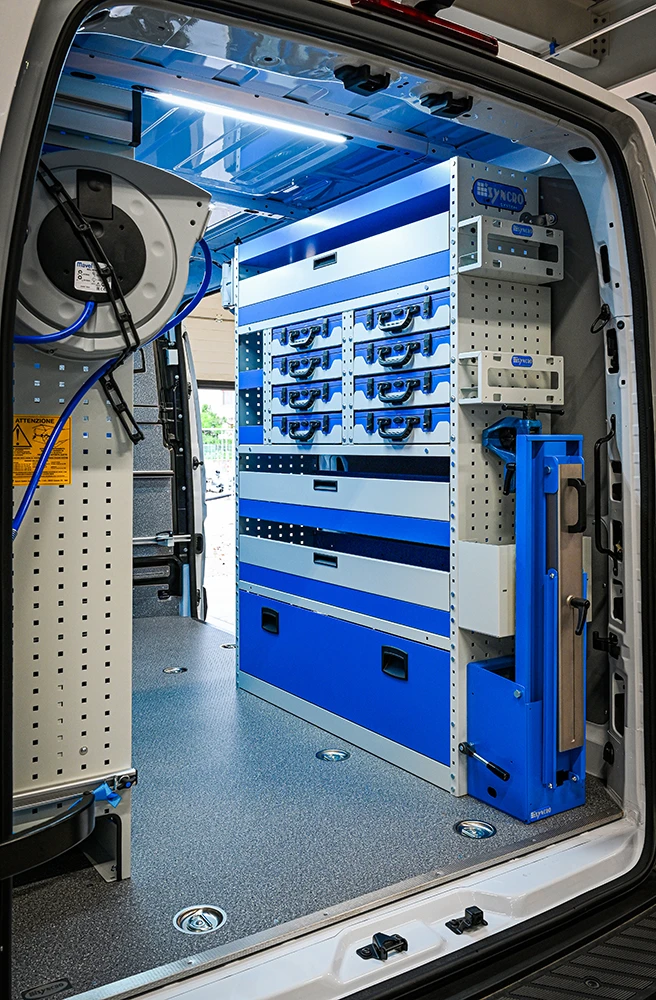

The right of the Interstar: case trays and a vice bench

On the right of this Interstar we can see:

  • a floor-level compartment with a lift-up door
  • three shelves with Syncro’s patented lift-and-rotate doors
  • two narrow configurable shelves for small consumables
  • eight trays for metal cases
  • a top shelf
  • a fold-away vice bench with support and metal vice

Focus: accessories on the racking side panel and bulkhead

Here are the most convenient and logical places to install accessories when the sides of your van are full:

The racking side panels. At the rear of the Interstar, on the left, we have a Syncroblock bar with a lashing strap and a hose reel for the compressed air supply; on the right are a metal pocket and two spray can racks. At the side door are a fire extinguisher bracket, a reel for electric cable and an electric power panel.

The bulkhead. This area of the Nissan is fitted with two Syncroblock bars, one equipped with two universal clamps and the other equipped with a rubber profile to prevent scratching delicate cargo.

The roof. LED tube lights are fixed to the roof cross-members to provide homogeneous light throughout the van.

Other racking solutions for the Interstar

Other racking solutions for industrial cleaning services

Now what? It’s time to decide!

Exploring this Interstar transformation will have given you a good idea of what can be achieved with Syncro racking.

If you have also browsed the other examples we’ve suggested, you will certainly have seen the amazing range of possibilities that Syncro System offers to van users.

Now all you need to do is:

  • contact us (do it now!!)
  • request a consultation (no obligations…)
  • entrust the job to the van racking specialists (that’s us!!)

We hope to see you soon. Don’t put it off. Between 1996 and 2024 our workshops have installed custom racking solutions in over 100,000 vans.
