SHELVES WITH MATS AND DIVIDERS

Syncro Ultra van shelves are made from high-strength steel. They consist of a surface with raised front and rear edges and low side edges. These shelves can be installed at any desired position between two side panels of 72 mm or more in height.

Shelves installed against the van’s bulkhead

VIBRASTOP CLIPS AND NON-SLIP MATS FOR TIDINESS, SECURITY AND SILENT OPERATION

Each shelf comes complete with:

a lightweight and machine-washable non-slip mat
aluminium space dividers (between 0 and 12 in number depending on the width of the shelf), complete with Vibrastop plastic clips that eliminate vibration when the van is moving. Dividers can be fitted, moved and removed easily to configure the shelf according to the needs of the van user.

These shelves are 72 mm high and vary from 253 to 1,521 mm in width. They come in five different depths: 210, 260, 310, 360 and 410 mm. To stop material falling down behind the racking, they can be fitted with back panels to raise the rear to a height of 180 mm and contain material more effectively.

HIGH-BACk SHELVES

02_Shelves with 180 mm high metal dividers

High-back shelves with 180 mm high back panel and dividers, for greater storage capacity and improved separation between compartments.

EXTENDABLE TOP TRAYS

An extendable tray with access at the rear

Extendable top trays have edges of 80 or 100 mm in height and are 216, 260 or 310 mm in depth. They feature a fold-down door at one end for loading and unloading long objects like pipes and cable channels. Given the nature of the materials they generally hold, top trays do not come with mats or space dividers. They are always installed at the top of racking columns. Top trays vary in length from 1,014 to 4,056 mm to fit all models of van, from the smallest to the largest.

STAINLESS STEEL TRAYS FOR TRANSPORTING LIQUIDS

A stainless-steel tray for carrying liquids

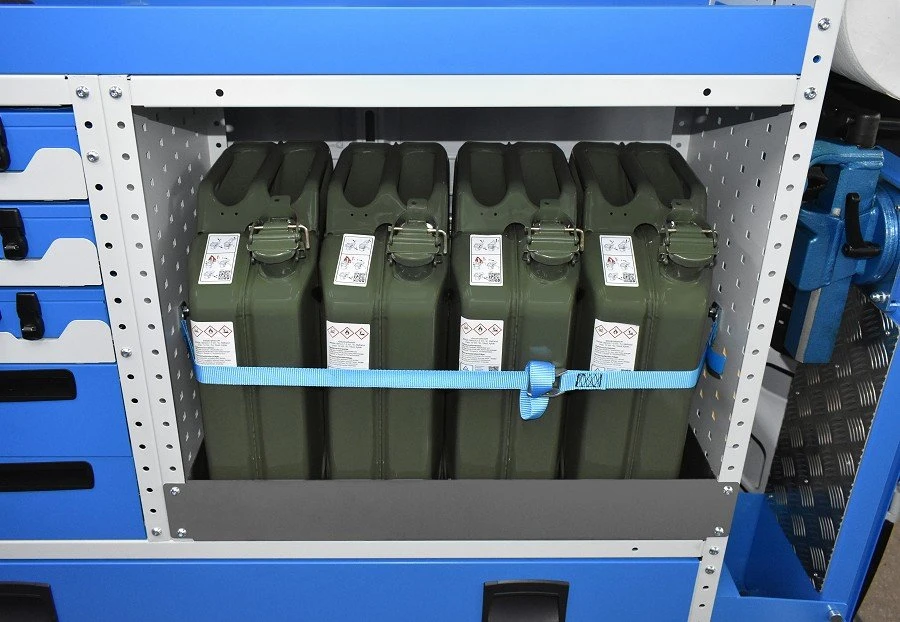

A stainless-steel tray containing steel jerry cans

Trays for transporting liquids are the only type of Syncro shelf made entirely from stainless steel instead of high-strength steel. They are sealed by welds at all four corners to permit the transport of cans or bins of oil, fuel or detergent and to prevent leaks or spillages from soiling or damaging the van’s bodywork or other cargo. These stainless-steel trays are extremely easy to install and to remove for emptying and cleaning. They fit between two side panels and their front tabs can be held in place by screws or knobs using standard holes. Liquid containers carried in the trays can be held in place by straps or other retaining systems. Liquid transport trays come in different sizes: widths range from 507 to 1,521 mm and depth is 310, 360 or 410 mm.

SHELF TOPS IN MARBLE-LOOK PLYWOOD

A custom cabinet with a 9 mm marble-look plywood top

9 mm thick marble-look plywood tops can be applied to high-strength steel shelves to carry cases or other material. The tops reinforce the shelves and improve their appearance. Plywood shelf tops come in widths of 253 to 521 mm and in depths of 210, 360 or 410 mm.

COMBINING ULTRA SHELVES UTILITY AND TOOL CASES

Ultra shelves with non-slip mats and dividers can be installed at any height between two side panels and above or below any other horizontal element, including:

Extendable top trays can be installed above any horizontal element, but always need to be at the top of columns of racking. Trays for transporting liquids are normally installed at floor level and therefore occupy the lowest position in a column of racking.

THE VAN RACKING SPECIALISTS

If you are looking for a simple and practical way to carry tools and materials in your van, you can’t go wrong with Syncro System shelving. Along with drawers, shelves are among the best-selling products in the Syncro catalogue.
