THE VAN RACKING SPECIALISTS
METAL DRAWERS: ANOTHER SYNCRO SUCCESS STORY

Along with shelves, drawers are the most popular racking elements in the Syncro catalogue, which has offered custom racking solutions for all kinds of business since 1996. Syncro’s super-tough drawers are ideal for carrying tools, spare parts and sundries securely and in perfect order.

SYNCRO METAL DRAWERS ARE THE IDEAL SOLUTION FOR VAN USERS WHO PRIORITISE STRENGTH, FUNCTIONALITY AND PERFECT ORDER.

DRAWERS

Syncro Ultra drawers are made from high-strength steel and come in various sizes. There are four heights (72, 108, 144 and 216 mm), three lengths (short: 507 mm, medium: 760 mm and long: 1014 mm) and three depths (310, 360 and 410 mm).

With 45 models to choose from, there is bound to be one that satisfies your needs!

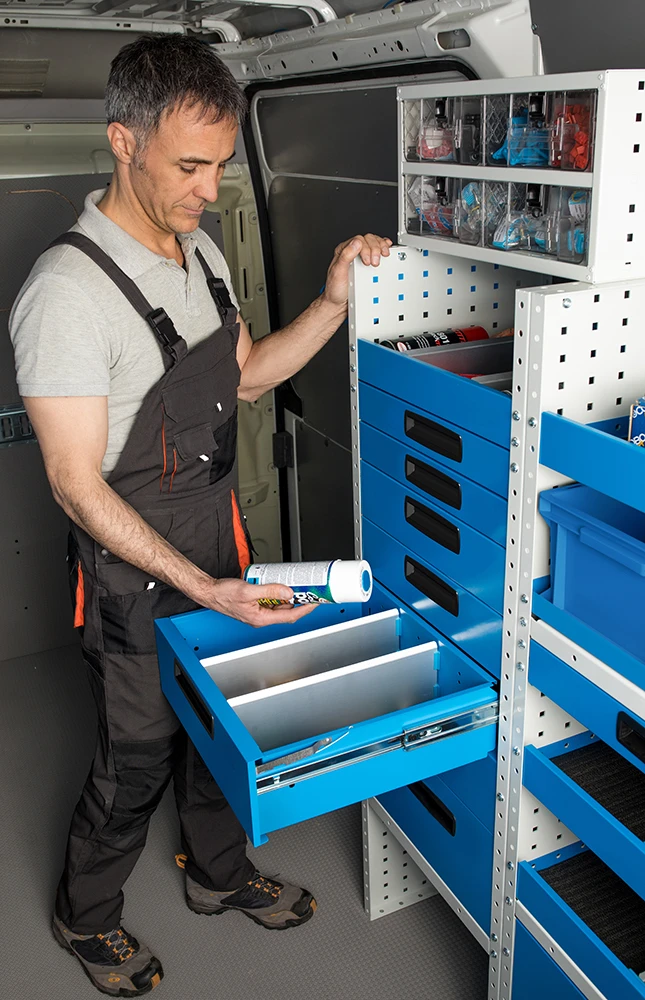

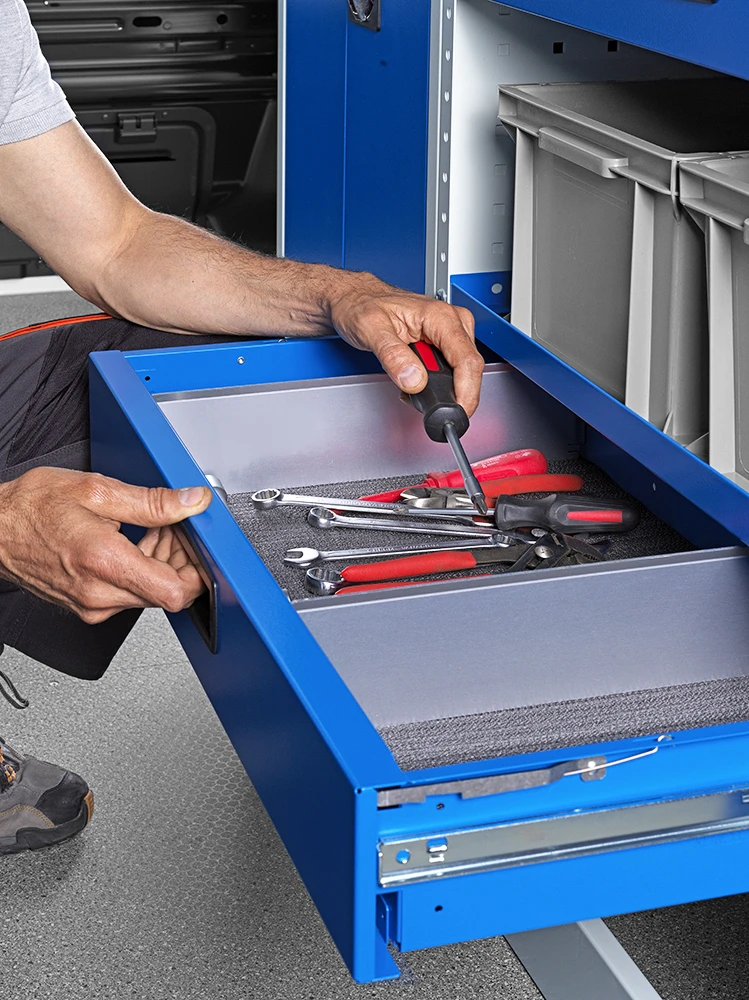

Closed drawers in the van A Syncro Ultra drawer in high-strength steel A Syncro Ultra drawer with a recessed release button and internal space dividers An open Ultra drawer in the van

All drawers share the following characteristics:
  • a front panel with no protruding parts, and with a recessed handle
  • automatic locking when closed, with a press-to-release mechanism inside the handle
  • extension beyond the full length of the drawer thanks to ball-bearing mounted telescopic runners
  • load capacity up to 120 kg for versions with two pairs of runners.
In addition to “standard” drawers, Syncro also supplies special case trays and writing board kits for converting plain drawers into pull-out desks. Inside, drawers can be fitted with non-slip mats, space dividers and modular plastic containers to keep materials separate and in order.

ACCESSORIES FOR DRAWERS

10_A drawer with a non-slip mat and space dividers 11_An Ultra drawer with modular plastic containers
Drawers are supplied with two types of standard accessories:
  • A non-slip mat in synthetic rubber with embedded nylon threads. Syncro drawer mats are lightweight, tough, resistant to oil, chemicals and sunlight and have a high-friction surface to stop contents sliding around when the van is moving. Syncro drawer mats sit snugly in the bottoms of drawers. They are also machine washable.
  • Two aluminium space dividers for creating separate compartments inside the drawer. Syncro space dividers feature an exclusive locking system that makes them easy to fit and remove but keeps them firmly in place when in use.

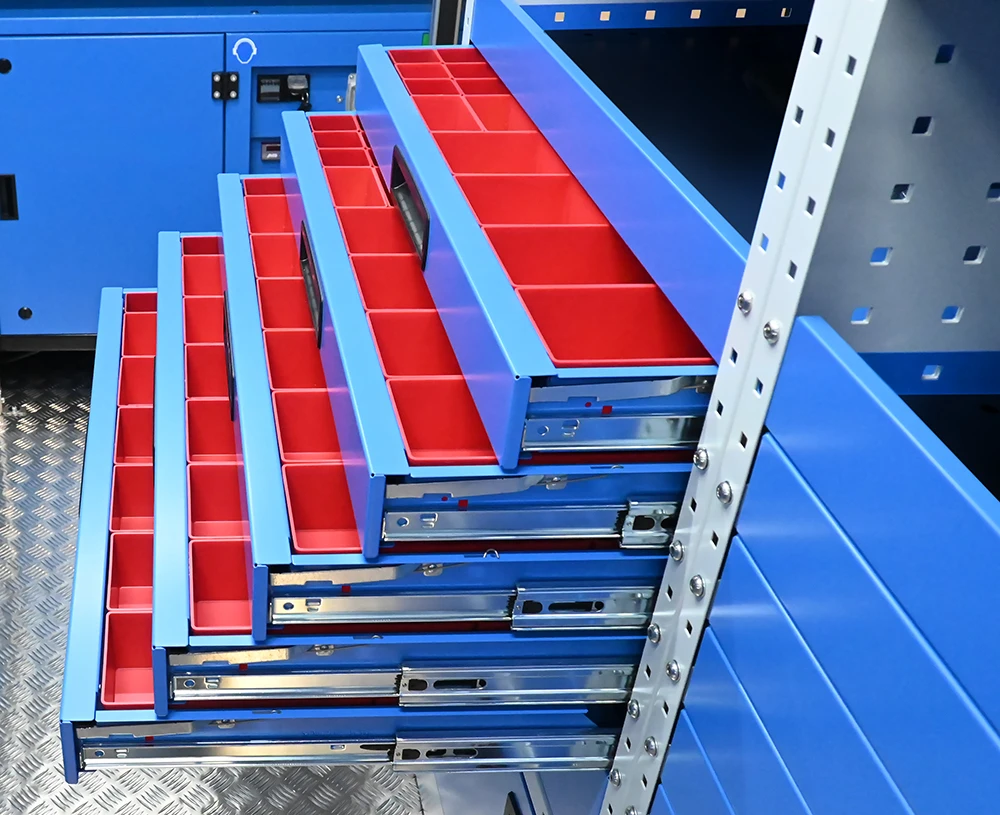

On request, drawers can also be fitted with modular plastic containers. These come in 7 different sizes and can be combined as needed to fill the bottoms of all 72 and 108 mm high drawers.

WRITING BOARDS FOR DRAWERS

20_A drawer with a writing board kit 22_The board lifts to provide access to the drawer 21_A writing board used as a desk for a laptop
Equipped with a writing board kit, Syncro drawers also serve as pull-out desks for filling in documents, supporting a laptop or viewing drawings. The kit consists of a marble-look plywood board, two hinges for the rear of drawer and two stops for the front. The kit can be applied to all drawers of 71, 108 or 144 mm in height. Once the kit is installed, the writing board forms a practical supporting surface and provides easy access to the drawer itself.

CASE TRAYS

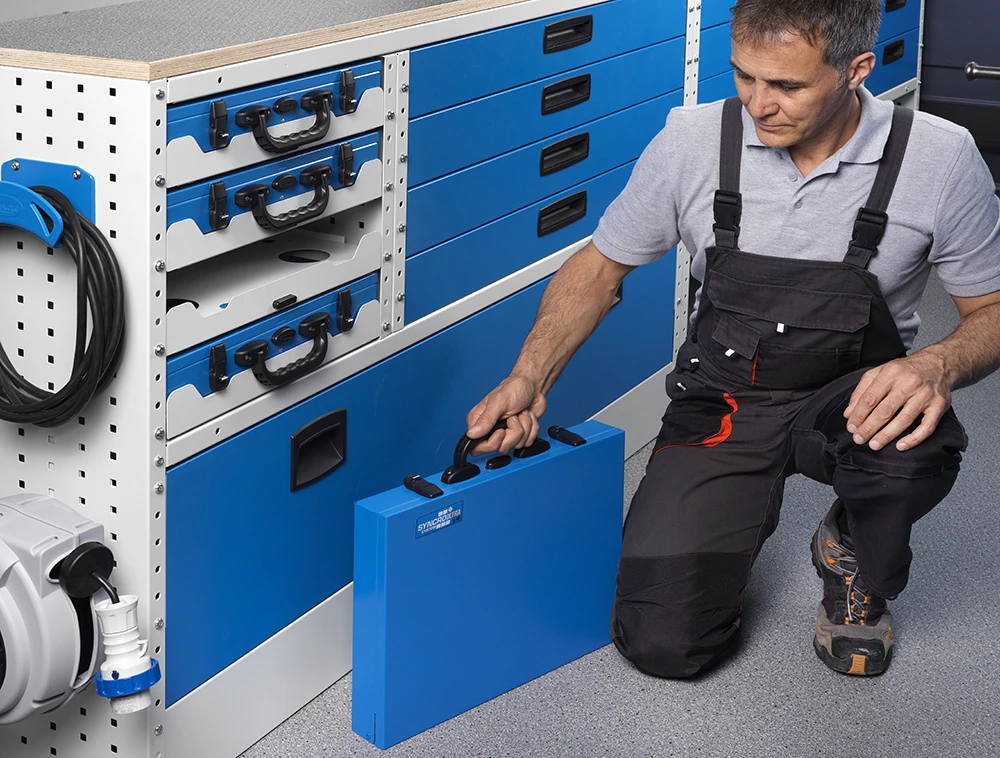

30_A Syncro Ultra case tray 31_Removing a case from a tray 32_Opening a case on an extended tray 33_A case removed from a tray
Syncro case trays open exactly like drawers but are specially shaped to hold cases. They are mounted on telescopic runners and can hold one or two metal cases laid flat, Bosch-type stackable plastic cases or 3 CAS35 containers.

COMBINING SYNCRO ULTRA METAL DRAWERS

Syncro Ultra drawers can be installed at any height between two side panels. They can be combined with other metal drawers or with any other horizontal element, such as:

Because Syncro Ultra drawers are supported by two standard Ultra side panels, they generally do not need a drawer cabinet. There are, however, exceptions: sideways-opening drawers and 70 cm deep cabinets.

SIDEWAYS-OPENING DRAWERS

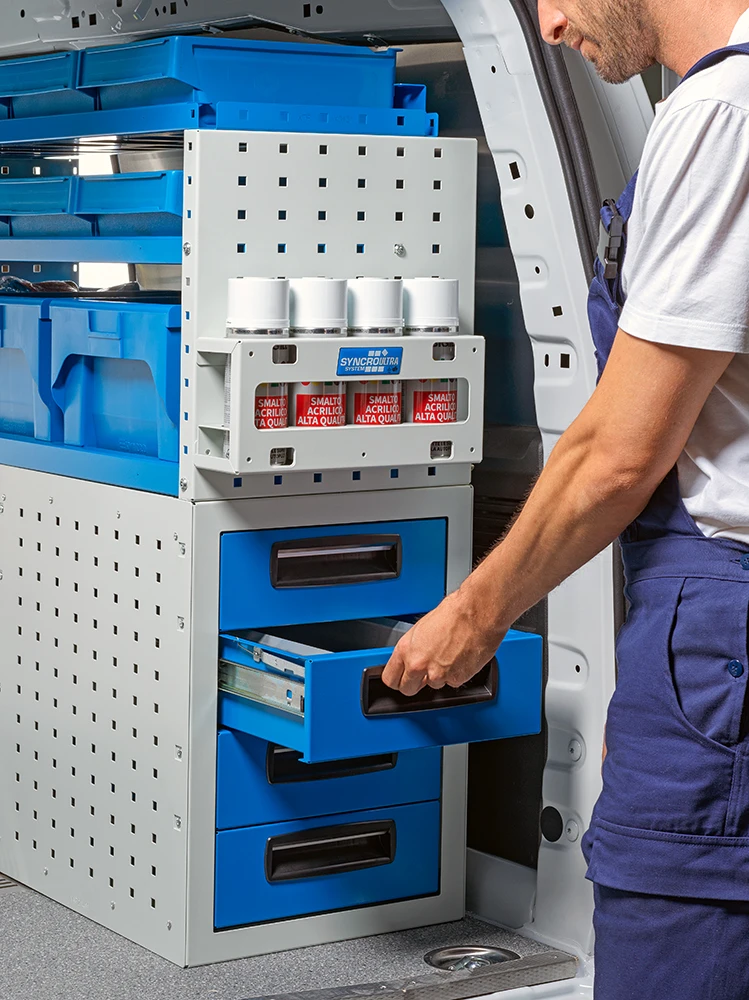

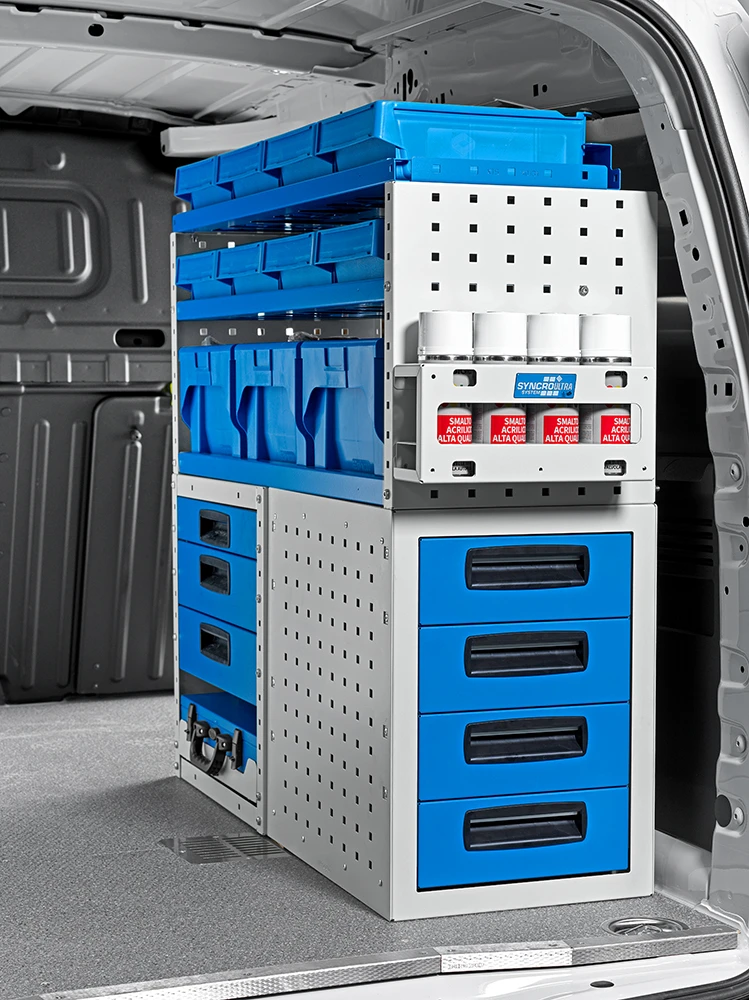

42_A cabinet of sideways-opening drawers with one drawer open 40_A sideways-opening drawer cabinet accessible from a side door 41_A sideways-opening drawer cabinet
Sideways-opening drawers offer easy access to contents from the ground, without you having to climb into the van. They come in sets of 2, 3 or 4 drawers in a plain cabinet, and are slightly different in design to standard Ultra drawers.

DEEP DRAWER CABINETS

50_A cabinet of 70 cm deep drawers 51_70 cm deep drawers
These cabinets are 706 mm deep (long) and are particularly suited to minivans and company cars. With the back of the cabinet placed against the vehicle’s bulkhead, you can access drawer contents from outside the vehicle. Cabinets contain 2, 3, or 4 drawers of the same or different height (100, 130 or 200 mm).
