Modular roof rack systems for vans

Loading a roof rack



Syncro System ladder racks, roof bars and roof racks are made from lightweight but tough stainless steel, aluminium and rubber.
Thanks to their modular design, they can be moved easily between different vans simply by changing the roof fittings.

SYNCRO’S EXCLUSIVE ULTRASILENT PROFILE

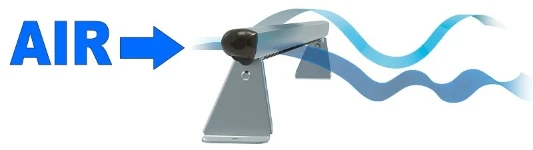

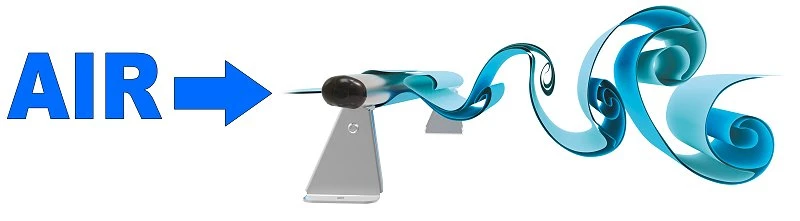

The noise generated by roof racks and roof bars is caused by a phenomenon known as "Karman vortex streets". In simple terms, a series of noisy vortices forms when airflow strikes the first cross bar. Now, Syncro engineers have designed the new ULTRASILENT profile for application under the first cross bar to eliminate this annoying noise. By breaking up the air flow that passes between the cross bar and the van roof, the new profile prevents the formation of vortices and dramatically reduces roof rack noise.

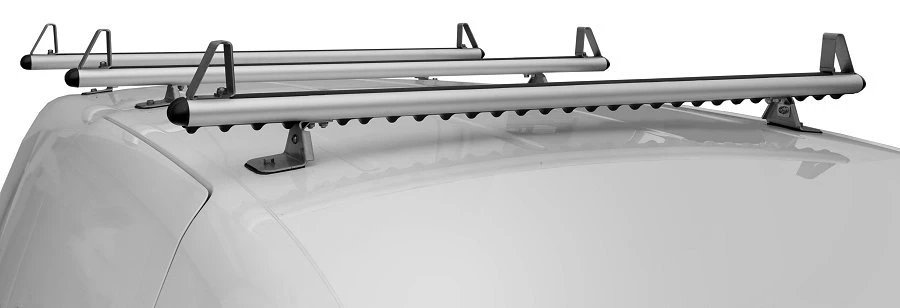

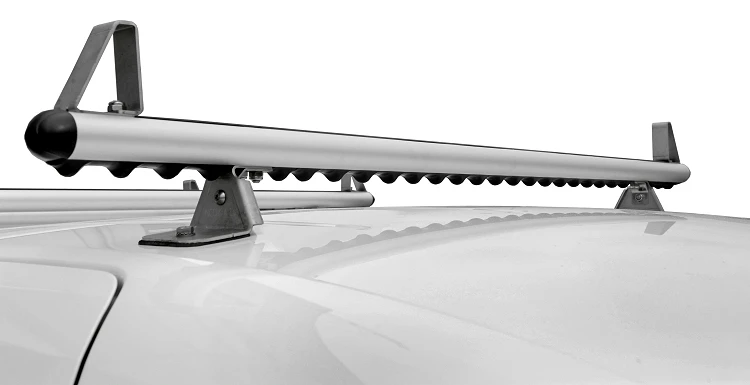

Even before this latest innovation, Syncro roof racks were particularly silent thanks to their specially shaped aluminium cross bars. Now, with the new Ultrasilent ribbed profile in place, noise is slashed by an additional 50%, making your van superbly silent even at motorway speeds and above.
These new noise-reducing profiles are extremely light, do not take up useful load space and do not interfere with the use of ropes or straps to secure cargo.

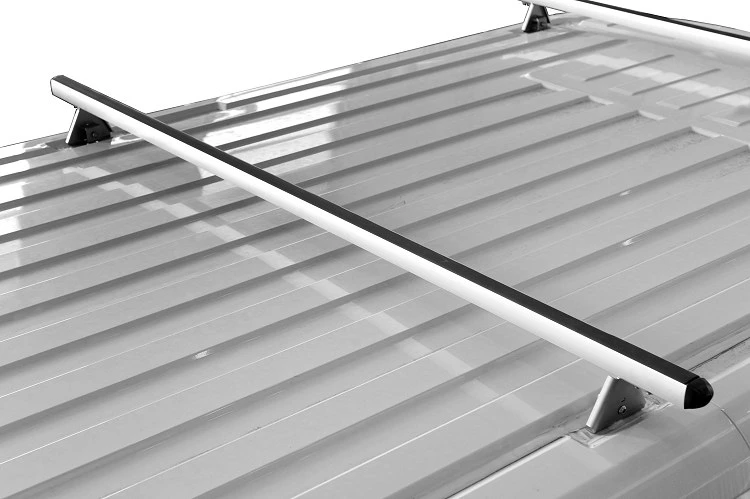

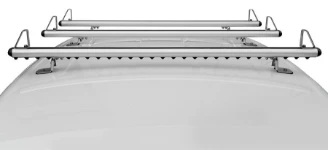

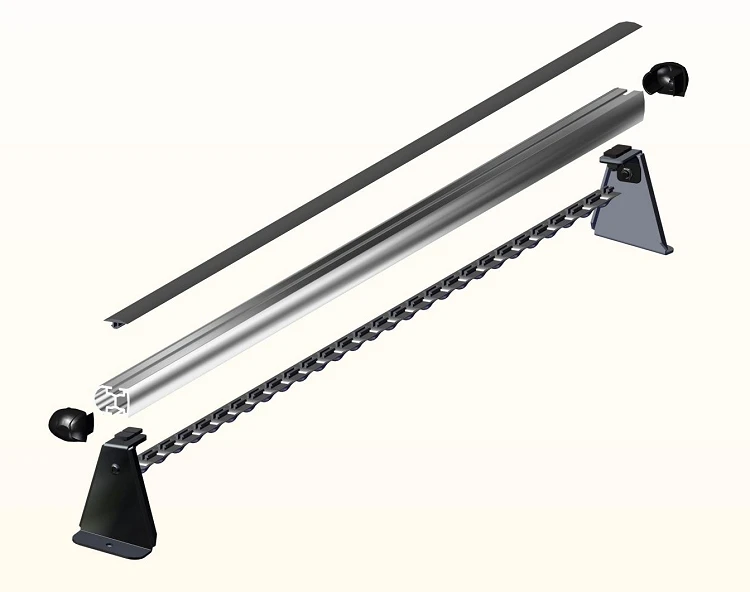

CROSS BARS FOR VANS

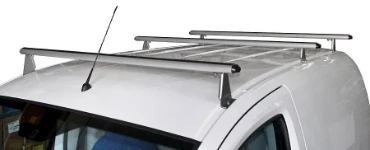

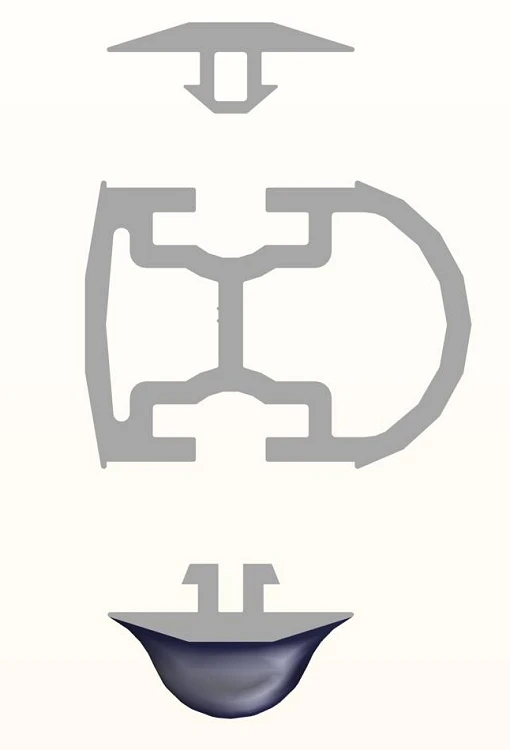

Aluminium cross bars with a soft rubber top profile, stainless steel fittings, load stops and fasteners are the basic components of the Syncro van roof transport system. The cross bars, with their protective rubber top profile, fit across the van’s roof. The front bar is also equipped with an Ultrasilent noise-reducing profile on its underside. Cross bars are available with or without stainless-steel load stops.

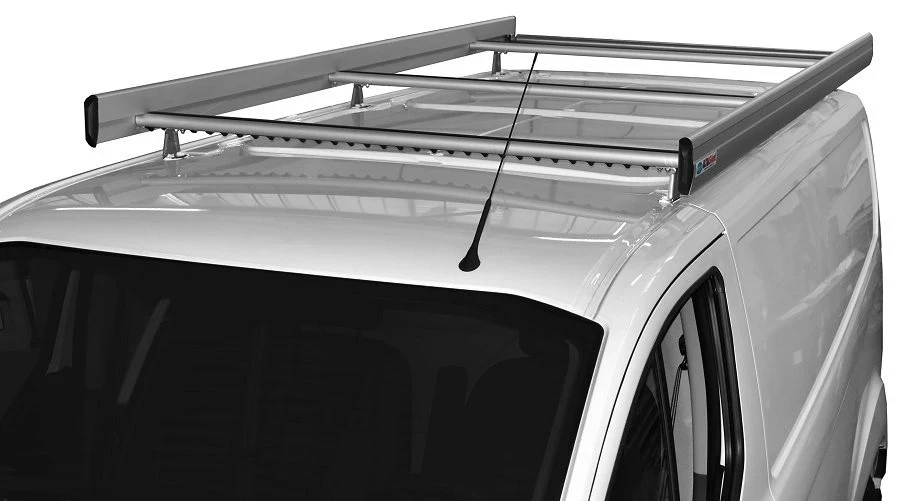

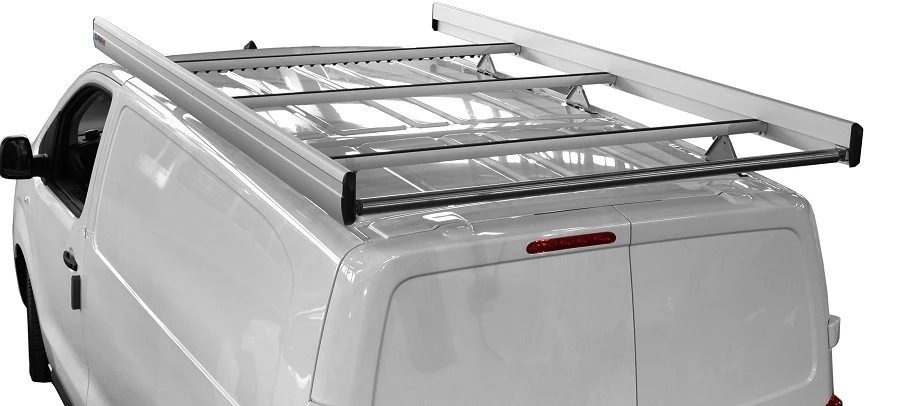

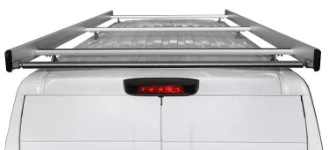

ROOF RACKS

Syncro System roof racks consist of a number of cross bars with rubber top profiles and two side fences to stop cargo sliding sideways off the roof. At the back, over the van’s rear doors, roof racks also feature a roller for easy loading and unloading. The front cross bar is equipped with an Ultrasilent profile.




SYNCRO SYSTEM LADDER SLIDES: DAMPED ACTION UNLOADING AND ASSISTED LOADING

Syncro System ladder slides:



  • are equipped with a damper for controlled unloading

  • can be fitted with a gas spring to assist loading

  • descend all the way to the ground


Syncro System customers can request a cross bars and ladder slide kit or a kit with cross bars, ladders slide and rear roller. Remaining roof space can be used to fit a walkway or even a second ladder slide kit.

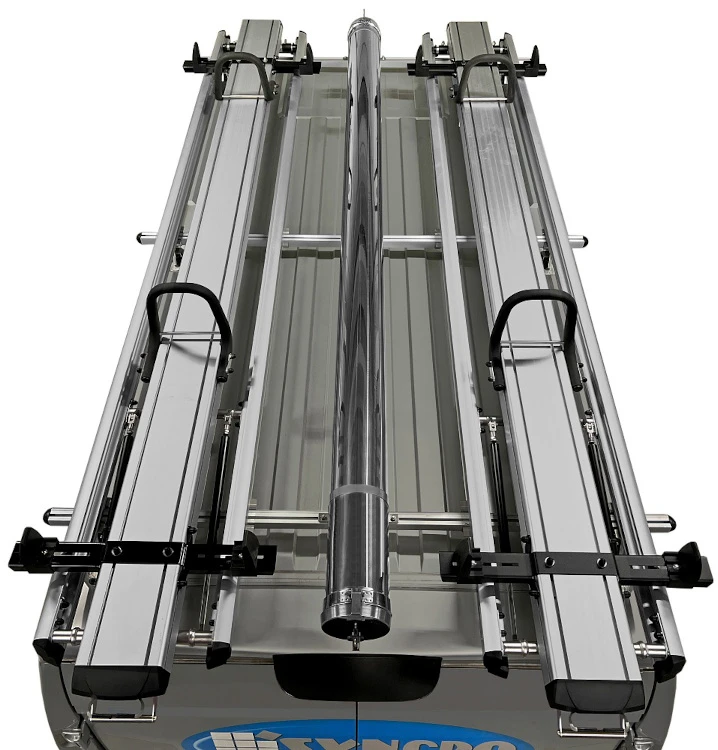

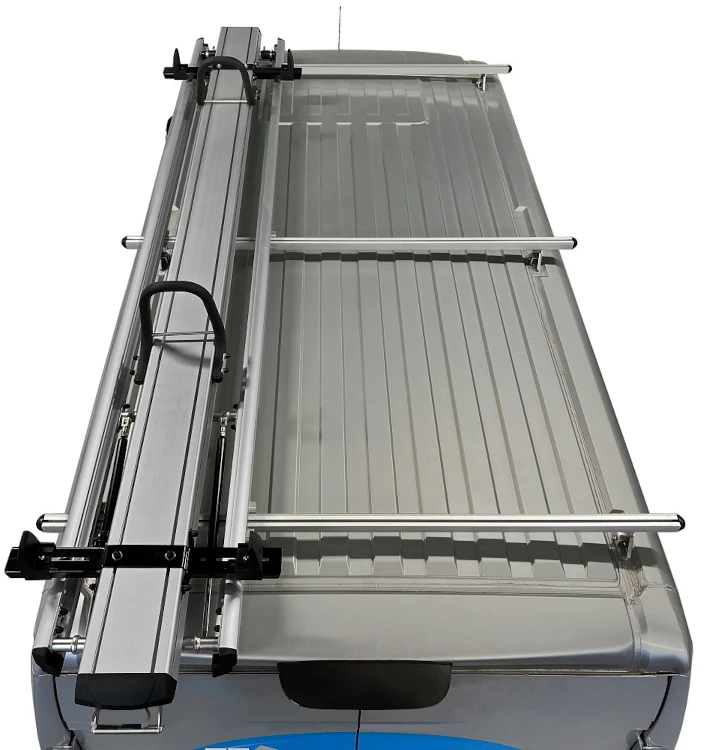

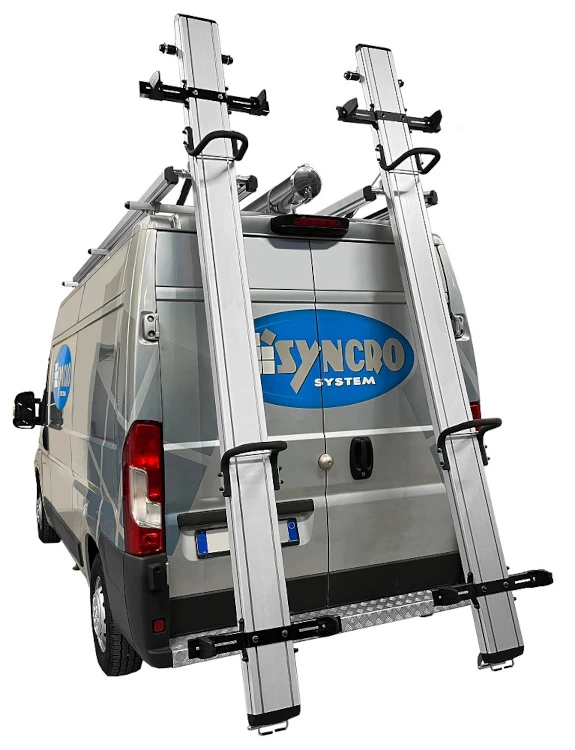

SINGLE AND DOUBLE-SLIDE LADDER RACKS

Single and double slide ladder racks consist of a set of cross bars fixed to the van’s roof and one or two ladder slides with damped unloading action. Syncro System ladder slides let you load and unload ladders quickly, easily and in full compliance with the relevant occupational safety standards. If only one ladder slide is fitted, a side fence can be added to the cross bars at the opposite side of the roof and a half-width loading roller can be fitted in the space between the ladder slide and the side fence.


Carry your ladders safely and effortlessly! Install the best van roof equipment for electricians, plumbers, aerial technicians and other trades!




UNDER-ROOF LADDER RACKS

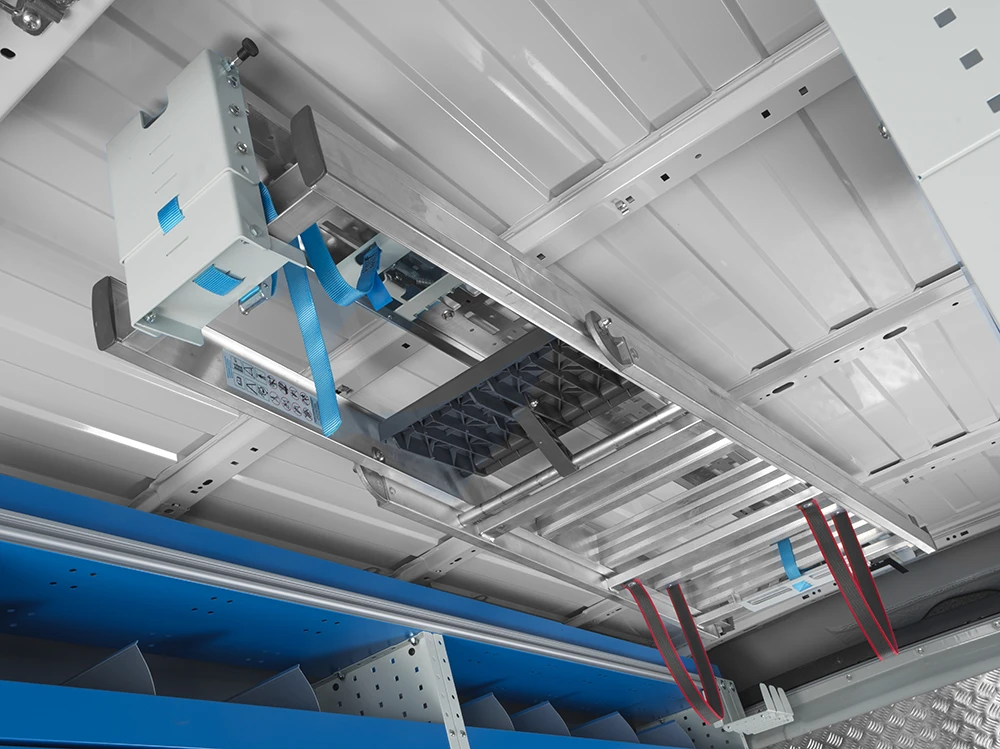

The latest innovation from Syncro System is ideal for van users who want to carry a ladder inside their vans but do not want to do without racking or clutter up the floor. Syncro’s new under-roof racks hold your ladder securely in place under the van roof, leaving the cargo compartment beneath free. The adjustable stop can be folded away for easier access to the cargo compartment. These ladder racks feature an automatic system for locking the slide at the end of its travel and an adjustable stop for holding the ladder at the rear. Operation is extremely quick, easy and safe. The ladder locks in place automatically at the end of its travel and, once secured with a strap at the back, remains firmly in place. This system offers clear advantages: your ladder travels hidden from sight and you don’t need the hassle of added bulk of a roof rack, meaning that you save in fuel too. And fuel economy is something we can’t afford to forget …

ALUMINIUM PIPE CARRIERS FOR VANS

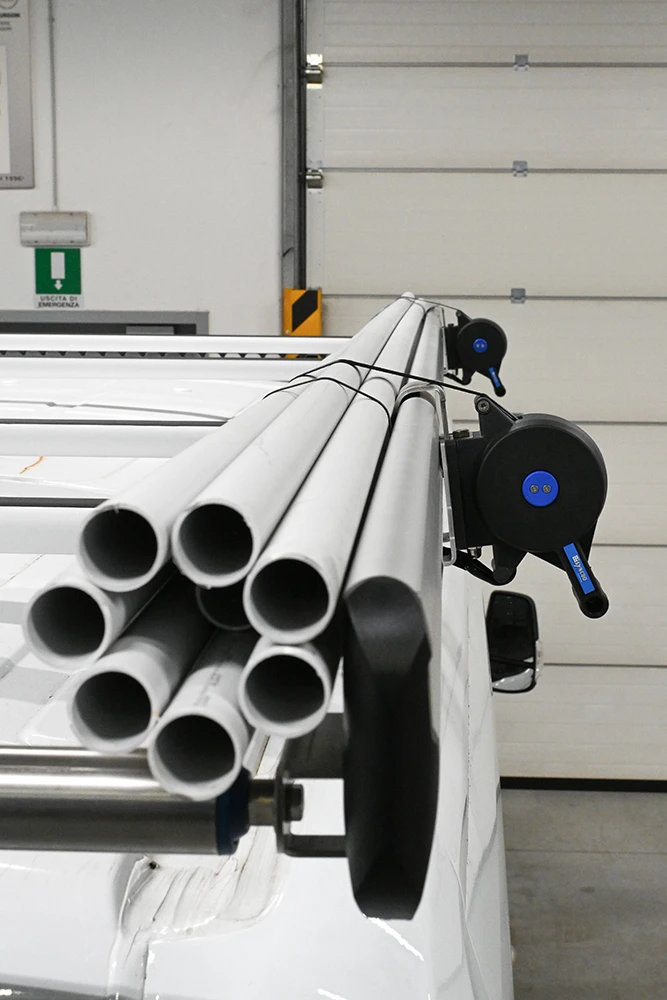

Syncro aluminium pipe carriers integrate perfectly with the Syncro modular roof rack system. They can be fitted to roof bars, roof racks and in conjunction with ladder racks, in any position and on any make and model of van. As with all Syncro System van racking products, pipe carriers represent a future-proof investment. You can move them easily from one van to another when needed. They are made from aluminium with a tough, oven-hardened paint finish for excellent weather resistance. They come with two lockable access doors for maximum security on the road. The standard length is 3000 mm.

STAINLESS-STEEL PIPE CARRIERS


The Syncro catalogue also includes stainless-steel carriers for transporting lengths of pipe, cable channel, rods and other long items. These pipe carriers have a door at the rear. They can be used with all type of Syncro roof cargo systems: roof bars, roof racks and ladder racks.

VAN ROOF ACCESS LADDERS


These ladders, for installation on the rear door, provide safe and easy access to the roof of your vehicle. They are made from lightweight and weatherproof aluminium and can be installed without drilling the bodywork Ladders and fittings are available for most medium and large vans.

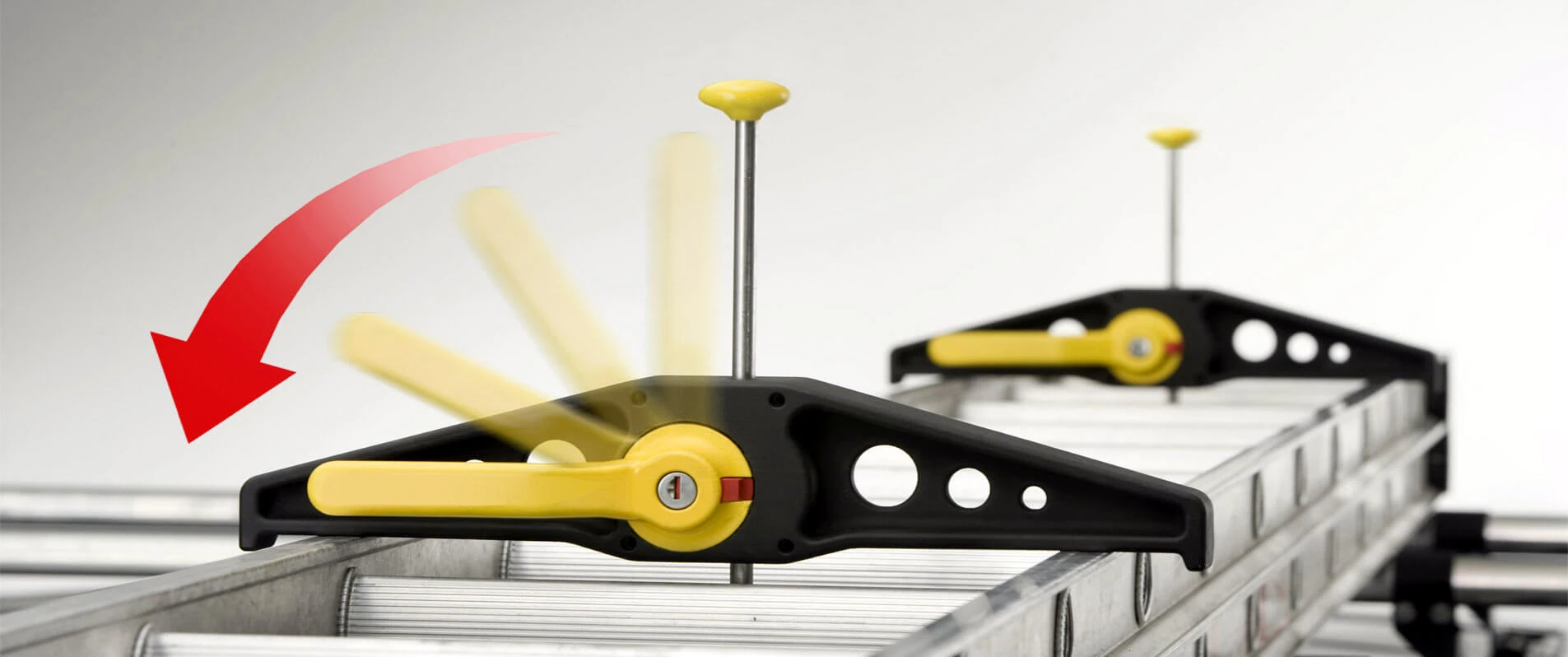

LOCKABLE LADDER CLAMPS FOR ROOF RACKS

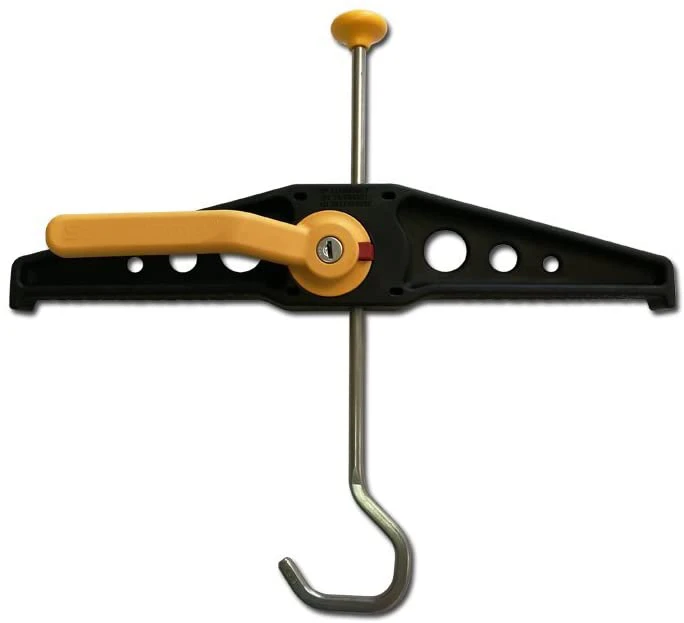

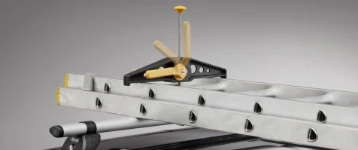

SAFECLAMP ladder clamps are extremely robust and highly resistant to corrosion thanks to the composite material from which they are made. The hook itself is in stainless steel. Their innovative, patented lever locking action makes them extremely quick and easy to operate and also ensures secure clamping. Safeclamp ladder clamps are supplied in pairs, complete with keys. They have passed a 20 g crash test and are GS certified by TÜV.

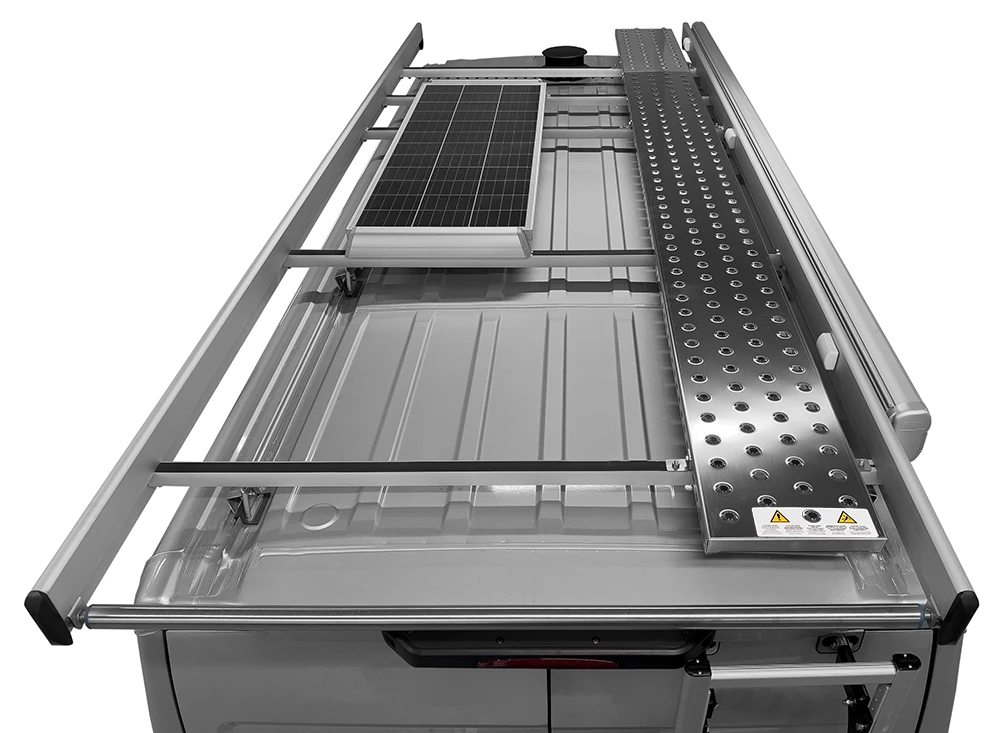

STEEL WALKAWAY FOR SAFE MOVEMENT ON THE VAN ROOF

Strong steel walkway with effective non-slip surface for the van's roof.
