Racking Syncro System for the Citroën Jumper

RACKING, SHELVING, DRAWER UNITS FOR JUMPER

The Citroen Jumper is a popular best-seller produced jointly by Fiat and Peugeot as well as Citroen. It is available in a number of versions of different length and height. The series introduced in 2006 features an impressively square and generous load compartment that is ideal for installing Syncro System racking and equipment. The photos on this page show that the fold-away vice bench is a particularly popular accessory for this van. Other much-appreciated accessories for transforming your Jumper into a fully equipped mobile workshop include the paper roll holder, fire extinguisher bracket and cable holder.

RACKING WITH SHELVES AND CONTAINER CABINETS FOR THE JUMPER

Racking seen through the Jumper’s side door

Tilting transparent containers on the Jumper’s bulkhead

The first thing the Syncro team did in this van was install a floor liner in 12 mm thick resin-bonded birch plywood to serve the dual purpose of protecting the floor against possible damage and creating a perfectly flat surface. The racking on the left starts with two floor-level compartments. Above these are three steel drawers on ball-bearing runners, three shelves with internal space dividers, an open shelf with adapters for cases and finally, six removable plastic containers. On the right of the van is another floor-level compartment then, further up, a pull-out bench with a 125 mm vice, a large shelf with a door, two trays with four cases with transparent lids, another shelf with space dividers and more polypropylene containers. The racking on the bulkhead starts with an open floor-level compartment, above which we can see a series of cabinets with transparent containers in PMMA, the amazingly tough material used to make aircraft and submarine windows. The van is also equipped with a series of useful accessories: a cargo retaining bar with rails, an LED ceiling light, a first air case, spray can racks, and an aluminium bar with cargo lashing straps.

A MOBILE WORKSHOP IN A JUMPER

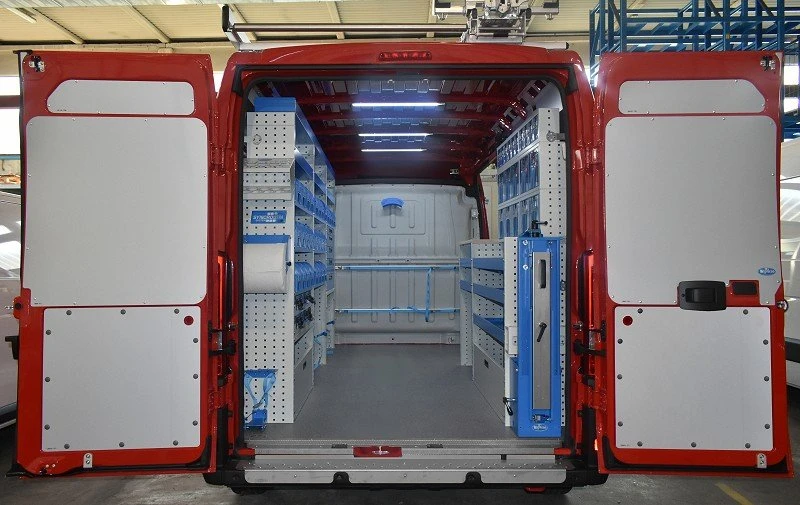

The Jumper equipped as a mobile workshop

Cargo retaining bars and cable holder on the Jumper’s bulkhead

The right and left side racking seen through the side door

The Jumper’s cargo compartment is spacious enough to hold a complete mobile workshop. In the van shown here, the Syncro team began by protecting the floor with a marble-look liner in 12 mm thick plywood and protecting the walls and doors with painted steel panels. The racking on the left comprises three floor-level compartments, two of which are equipped to carry cases, two trays with four component cases, twenty-eight removable polypropylene containers, five steel drawers on ball-bearing runners, three shelves with internal space dividers and a full-length top tray with a rear door for carrying long objects. On the right are two floor-level compartments, one of which has a lift-and-rotate door, a work bench in 24 mm plywood and three cabinets of tilting transparent containers, one of Syncro’s best-selling products. This racking system is made even more functional by the addition of a fold-away bench with a steel vice, three powerful LED ceiling lights, a fire extinguisher bracket, a paper roll holder, a silicone cartridge rack, a cable holder and two aluminium bars with cargo retaining straps.

RACKING ONLY ON THE LEFT OF THE JUMPER

Straps and hooks on the right of the Jumper

Very often, van owners use their vehicles not only to carry their tools and equipment but to transport goods and materials too. In cases like these, racking can be confined to just one side of the van, leaving the rest of the floor free for cargo. This is an example of a Jumper with racking only on the left. The right wall and the bulkhead have been fitted only with aluminium bar and strap systems for securing bulky items.

FLOOR AND BODYWORK LINERS FOR THE JUMPER

Floor and bodywork liners in the Citroen Jumper

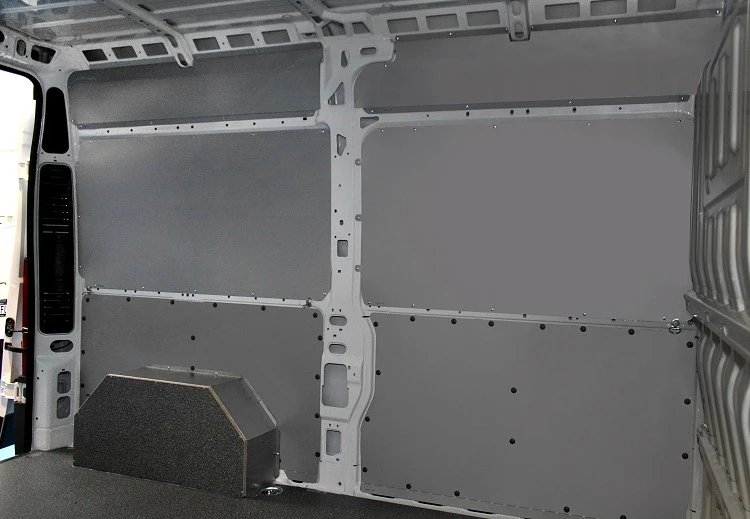

A closer look at the Jumper’s protective liners

One of the top priorities for any van owner must be to protect their vehicle’s bodywork. Van manufacturers provide little or no protection and it is all too easy to damage your van’s body during loading, transport, or unloading operations. To satisfy this need, Syncro supplies and fits floor liners in marble-look or rubber-coated plywood or in aluminium tread plate, and bodywork liners in steel or aluminium sheet or honeycomb plastic, as well as wheel arch covers, window grilles and other accessories.

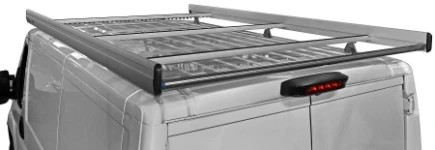

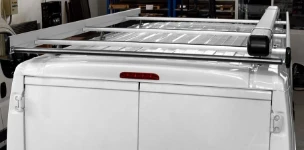

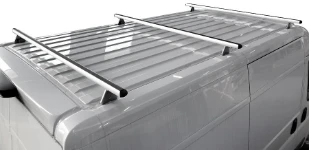

ROOF RACKS AND LADDER RACKS FOR THE JUMPER

There is never enough space in your van! That’s why so many van users need to load materials on the roof too. Syncro System produces and installs a wide range of roof bars, roof racks and ladder racks for the Jumper.

A JUMPER WITH FLOOR AND BODYWORK LINERS AND A LOADING RAMP

The Jumper’s marble-look plywood floor liner and interior liners

The Syncro catalogue includes a vast range of products for preparing your Jumper to carry cargo or to serve as a mobile workshop. Our range includes accessories for easy loading, such as ramps and platforms in different dimensions and variants. This Jumper is equipped with a plywood floor liner with a non-slip surface, painted steel wall liners, wheel arch liners in plywood and steel, and an aluminium loading ramp with a capacity of 600 kg.
