THE VAN RACKING SPECIALISTS
Everything fully customised for the Movano? With Syncro System, yes!
The racking solution presented here is installed in an Opel Movano L3 H2 operated by a company that services drilling rigs for quarrying, mining and construction. This large van is ideal for conversion into a mobile workshop and the task was completed by Syncro System exactly according to the requirements specified by the owners:
- to carry all the spare parts and hardware needed for work at remote locations
- to keep everything in perfect order and readily accessible
- to have a well-equipped workspace for carrying out minor repairs and assembly jobs directly on site
- to be able to operate autonomously away from base
- to have enough space in the centre of the van to enter, work and move around with ease
Let’s take a closer look!
Bright, easy-to-clean liners for the Movano
Nothing has been left to chance in this Opel Movano, starting with the liners, which are crucial to keeping the van in tip-top condition for years to come, avoiding unnecessary repair costs and preventing a rapid loss in resale value as time goes by. The liners installed in this Movano are easy to keep clean and give the interior an attractive appearance thanks to a bright finish that helps illuminate the cargo compartment.
The floor is protected by a floor liner in aluminium tread plate while the bulkhead is covered in custom-made panels of marble-look plywood. Finally, the walls and doors are lined with panels of tough steel – a material that ensures maximum strength even in the event of a violent impact or sudden braking.
A fully equipped storage system on the left and right of the Movano
The customer specified that they needed to transport a large quantity of spare parts and hardware.
With this in mind, here is how Syncro laid out the cargo compartment.

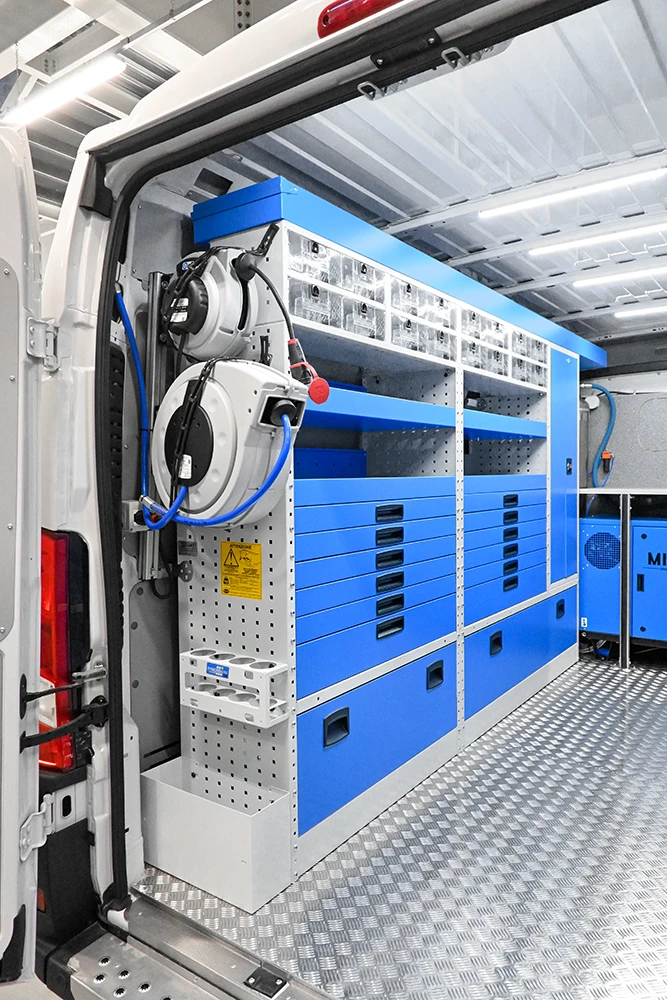

The racking on the left consists of:
- two floor-level compartments with lift-up doors
- 12 drawers with non-slip mats and internal space dividers
- four plain shelves
- Multibox cabinets with 16 removable transparent containers, each equipped with an additional internal space divider
- a full-length top tray with a fold-down panel at the van’s rear doors and easy access to contents over the side
- a large, secure locker

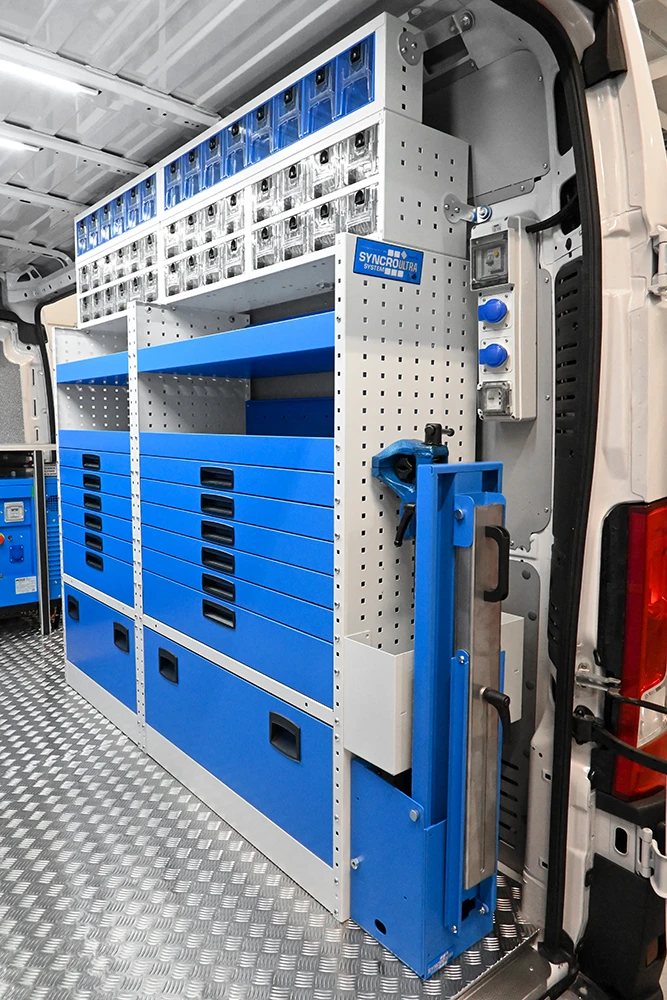

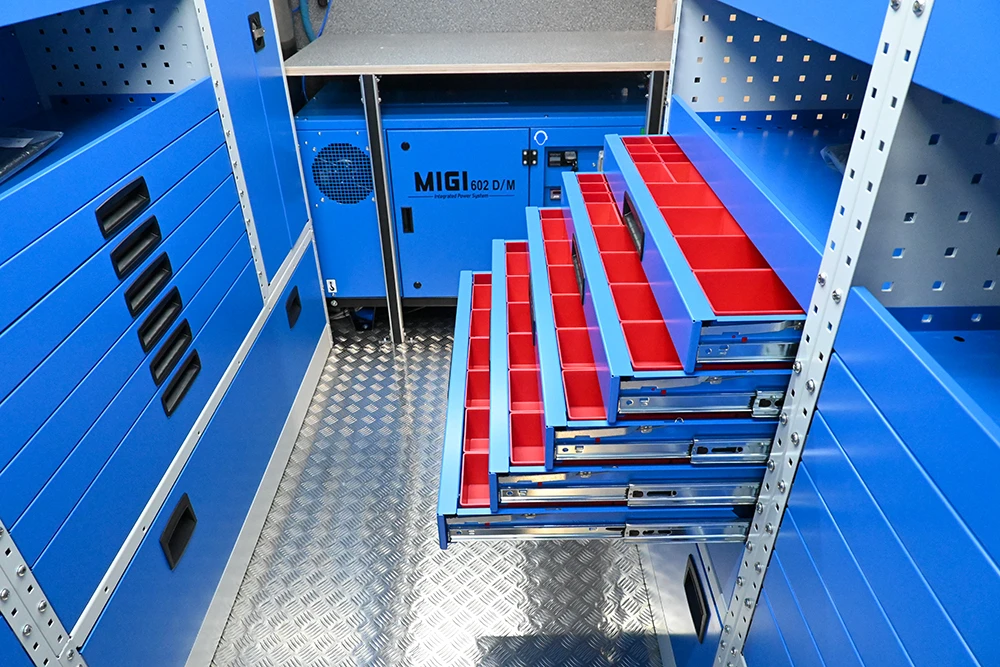

The racking on the right is virtually identical, except for the locker, but there are even more containers, since the main Multibox cabinet contains a total of 28 smaller pull-out containers and a second Multibox cabinet has been added at the top with 14 tilting and removable containers in place of the full-length top tray. In addition, the drawers on the right-hand side are all equipped with plastic trays that exponentially increase the number of items that can be kept separate.
The essentials: a vice bench and an electrical wiring system
Two other important features of this Movano for servicing drilling rigs can be seen on the rear-facing side panels: a practical electrical wiring system and a fold-away vice bench. These two important additions ensure full operability at the work site.
- A cable reel and a hose reel are fixed to the side panel of the left racking near the rear doors and connected to a compressor-generator combo at the bulkhead. Thanks to these two reels and the van’s electrical and pneumatic system, compressed air and electrical power are available not just inside the cargo compartment but around the van too. A practical industrial grade multi-socket is installed near the right rear door. Another multi-socket is installed inside the locker.
- A fold-away vice bench with telescopic support is fixed to the rear-facing side panel of the right-side racking. When folded away, this accessory takes up very little space but in just a few seconds it can be extended into a functional and robust work bench complete with vice, easily accessible without having to climb into the van.
The van locker: versatile enough to satisfy all needs
Syncro van lockers may look the same on the outside, but the interior is fully customisable. In the case of this Opel Movano, the bottom of the locker is equipped with a marble-look plywood base that supports an Ecoflow power station. Above this are two metal drawers and two open shelves with their flanges facing up. The locker even has its own source of electrical power: an internal multi-socket allows electronic devices and batteries for power tools to be recharged during storage.
The work area at the Movano’s bulkhead
Complementing the vice bench at the rear, a large marble-look plywood work bench has been installed at the van’s bulkhead. The work surface itself rests on an aluminium frame that houses a powerful compressor-generator combo, installed snugly against the bulkhead. A tank in the inside corner provides an effective reserve of compressed air for pneumatic tools. A third multi-socket serves the needs of this work bench.
All the accessories you need in this Movano

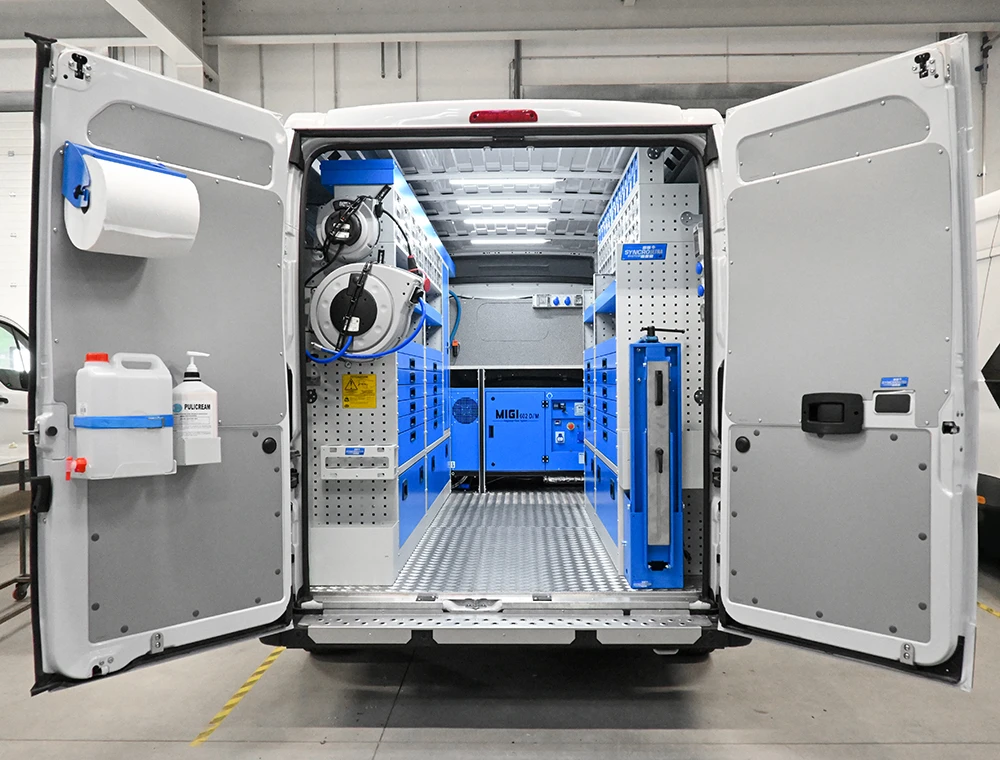

The mobile workshop in this Opel Movano L3 H2 is complemented by a number of essential accessories.
A cleaning area: the left rear door is fitted with a large paper roll holder, a handwash kit with a water tank and tap and a soap dispenser. All these items are supported by dedicated holders attached to the liner panels.
Cargo retaining systems: the Syncro System catalogue offers a wide range of cargo retaining accessories in the form of hooks and straps and holders for more or less specific purposes. These items ensure orderly storage inside the van and guarantee the safety of the van’s occupants and other road users. This Movano is fitted with two multi-purpose metal pockets, a spray can rack, and a section of slider bar arranged vertically to mount the reels.
Lighting: a well-equipped mobile workshop requires proper interior lighting. The Syncro team installed four energy-saving LED tube lights on the roof cross-members to provide bright, uniform light throughout the van.
Need a special racking solution for your van? We can make it happen!
What exactly is a “special racking solution”? Anything out of the ordinary that gives you the functionality you need can be defined as special!
View other racking solutions for the Movano.
View SPECIAL racking solutions.
If you have something special in mind for your van, get in touch with Syncro System at your the nearest dealership. You will benefit from the experience of a company that has specialised in van racking since 1996 and has fitted out over 100,000 vans in 28 years of work, earning the praise of over 98% of customers.
