Syncro racking for a body repair shop

A Peugeot Boxer with a complete racking system for a body repair shop

The photos on this page show a Peugeot Boxer that Syncro System fitted out as a mobile workshop for a body repair shop, to allow repairs and maintenance work to be performed away from base. This L2H2 Boxer has racking on both sides and also boasts a series of useful accessories for cargo retaining, cleaning and internal and external lighting.

The Boxer’s liners: major benefits from a minor investment

Before starting the job of installing the racking and accessories, the Syncro team first protected the bodywork of the Boxer as follows:

  • The walls and doors were protected with custom-made, pre-shaped, pre-drilled, painted steel panels.
  • The original floor was covered with a plywood floor liner.
  • The bulkhead was covered with panels of the same material as the floor liner, arranged to follow the contour of the bodywork.
  • The wheel arches were enclosed by liners made from plywood and steel sheet.

Shelves and a compressor on the left of the Boxer

The left side of this Peugeot Boxer is laid out as a storage area for tools, small parts and spares. The area around the wheel arch has been transformed into a secure storage space thanks to the addition of a bar with hooks, lashing straps and sliding fittings. Above this are three configurable shelves with non-slip mats and metal dividers. Further up again is a cabinet of pull-out transparent containers and on top of this is a full-length top tray. The area near the bulkhead is enclosed at the top by a shelf, but is otherwise empty, making it the ideal location for the van’s 6 KVA, 870 l/min compressor-generator combo with compressed air tank.

Syncro’s work area in the Peugeot Boxer

The right side is the Boxer’s work area. The compartment around the wheel arch can be used to carry tools or materials. At mid-height we have two rows of metal drawers supporting a marble-look plywood work top with raised rear edge. A rotating vice is installed on this. The bench is brightly lit by an LED light fitted to the underside of the cabinet of tilting transparent containers located at the top of the racking.

The Boxer L2H2’s various accessories

The functionality of the body repair shop’s Peugeot Boxer is enhanced by a series of accessories:

  • a bar with an adjustable lashing strap and sliding attachments for securing materials and equipment to the bottom of the bulkhead
  • a paper roll holder, a hose reel and a cable reel on the side of the left racking
  • a handwash kit with water tank and tap and a soap dispenser in holders secured to the left rear door
  • LED ceiling lights

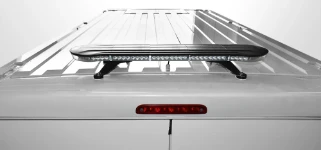

  • an LED light bar on the roof, with a range of signalling and lighting functions selectable from inside the cab

Have you chosen a Peugeot Boxer? Here are some ideas for you!

If you are planning to use your Peugeot Boxer as a mobile workshop, take a look at this page to view other sample racking solutions. Book an obligation-free appointment with your nearest Syncro System dealer now to discuss the perfect racking solution for your own requirements.
